Spring, steel & plastic fasteners are designed to provide secure, flexible, and cost-effective fastening solutions where components must endure vibration, repeated use, or thermal expansion. Combining the resilience of spring steel with compatibility for plastics, these fasteners simplify assembly, reduce weight, and deliver excellent long-term performance in industries such as automotive, consumer electronics, and home appliances. The versatility of spring steel plastic fasteners makes them a preferred choice where strength and flexibility must work together.
PRODUCT INDEX
DESIGN CONSIDERATIONS
When selecting spring, steel & plastic fasteners, engineers should consider:
Material compatibility: Ensure the steel used (often high-carbon, oil-quenched, or alloy spring steel) is compatible with the plastic’s thermal expansion, chemical exposure, and temperature limits.
Surface treatment or coating: To prevent corrosion and reduce wear on plastic parts, spring steel fasteners often need coatings (e.g. galvanised, zinc, phosphated, or more advanced coatings).
Fatigue & spring action: The fastener should maintain its spring properties over repeated cycles without permanent deformation. The design must avoid stresses in the plastic that exceed its fatigue or creep limits.
Load types: Torsional, flexural, bending, shear loads – understand how the spring steel element transmits those into the plastic.
Types & Variants of Spring, Steel & Plastic Fasteners
| Fastener Type | Description & Use Case |
|---|

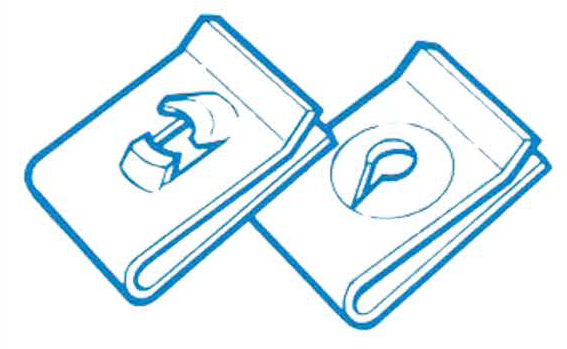

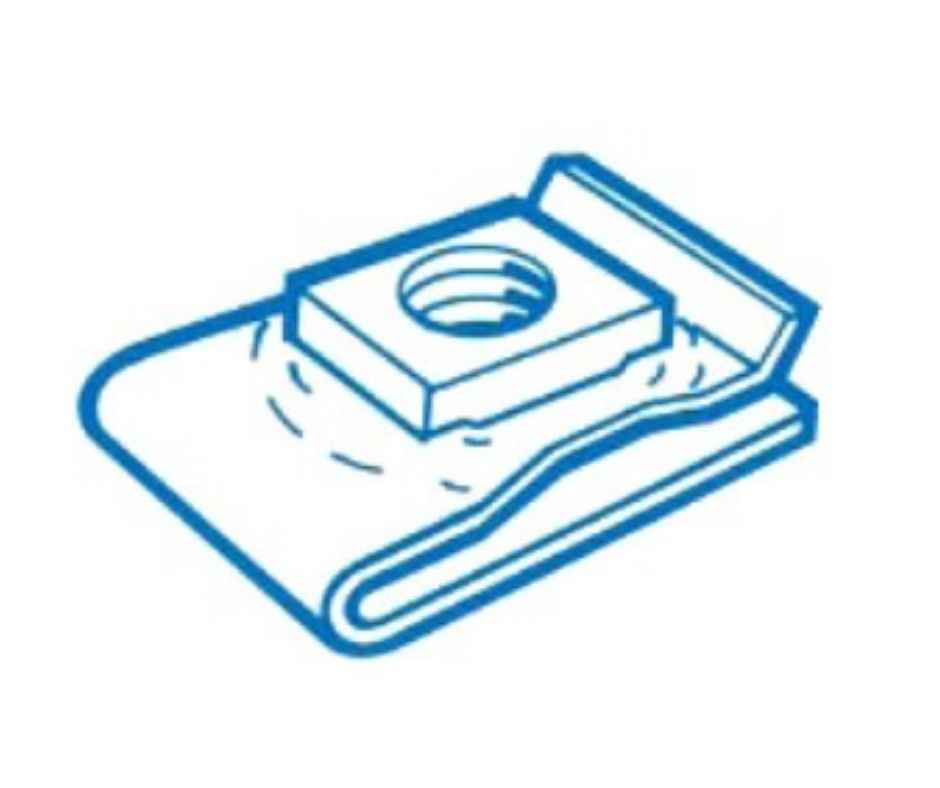

| U-Type Nuts | Clip over panel edges to provide captive threads; allow slight movement for misalignment. |
| J-Type Nuts | Shorter lower leg for clearance; used when full visibility at the mounting hole is needed. |
| Flat Nuts | Single-piece spring steel nuts acting as both nut and lock washer; ideal for light torque. |
| Expansion Nuts | Expand inside square or rectangular holes; useful for one-sided access assembly. |
| Prevailing Torque Nuts | Maintain torque under vibration and thermal cycling for secure joints. |
| Weld Nuts | Weldable nuts that create a permanent, high-strength threaded attachment. |
| Angle Nuts | Provide offset threaded surfaces for angled or complex assemblies. |
| Cage Nuts | Hold floating nut elements in a spring cage, allowing adjustment and easy panel installation. |
| Knob Clips | Secure knobs or shafts with removable spring tension. |
| Spring Latches | Spring-loaded clamping or latching for access panels and covers. |
| Push-On Fixes | Push-on clips that grip studs or pins quickly without tools. |
| Edge Clips | Fasten directly to panel edges to join or clamp components without screws. |
| Hose Clips | Provide a secure clamping force around hoses or tubing to prevent leaks and disconnections. |
| Compression Rings | Deliver radial clamping pressure, often used for sealing or securing cylindrical components. |
| Captar Nut Retainers | Retain nuts in position within plastic or sheet metal, ensuring alignment during assembly. |
| Plas Studs | Lightweight threaded studs designed for use with plastics, offering strength without added weight. |
When & Why to Use
Vibration and shock loading: Spring steel absorbs dynamic loading better, and prevents loosening or damage in plastic parts.
Reusable assemblies: When frequent disassembly/reassembly is required, spring steel parts maintain performance over many cycles.
Weight sensitive designs: Plastic helps reduce weight while steel spring components provide strength where needed.
Aesthetic or electrical insulation requirements: Plastic components can provide finish, insulation or colour; steel delivers mechanical stability.
Best Practices for Design & Installation
- Design robust bosses in the plastic for anchoring the steel component; ensure sufficient wall thickness and support ribs.
- Use fillets or chamfers where steel meets plastic to avoid stress concentration and crack initiation.
- Select proper coatings on steel to reduce abrasion and prevent corrosion which can damage interface with plastic.
- Control installation torque and insertion method: Pressing, screwing, or clipping should be done so steel doesn’t over-stress the plastic.
- Test in real conditions: Fatigue, exposure to heat/cold, UV, moisture, vibration.
- Account for differential thermal expansion: Choose combinations of plastic and steel that won’t cause loosening or failure through temperature changes.
Advantages & Use Cases of Spring, Steel & Plastic Fasteners
Spring, steel & plastic fasteners are widely used in automotive interior trim, appliance housings, office equipment, and electronic enclosures. They offer quick installation, vibration resistance, and cost savings by reducing the need for secondary operations such as tapping or welding. With their balance of resilience and ease of use, spring steel plastic fasteners are essential solutions for modern lightweight assemblies across multiple industries.
