Advantages
PSM U-Nuts offer substantial savings in manufacturing costs. They can be applied quickly and easily into self retaining position either over panel edges or to inside panel positions with most types providing a degree of float to allow for panel misalignment.
> No welding, staking or riveting
> Self retaining and floating
> Self locking and vibration proof
> Quick and easy to apply
> Lightweight
> Non-paint clogging
Method of Assembly
1. The P.S.M ‘U’-Nut is placed over the edge of the panel (Fig a) or through a pre-tamped slot (Fig b) and simply pushed home until the rear of the fastener locates against the panel/slot edge or the extrusion snaps the fastener into the clearance hole.
2. Insert screw through plain hole of fastener and tighten to recommended torque.

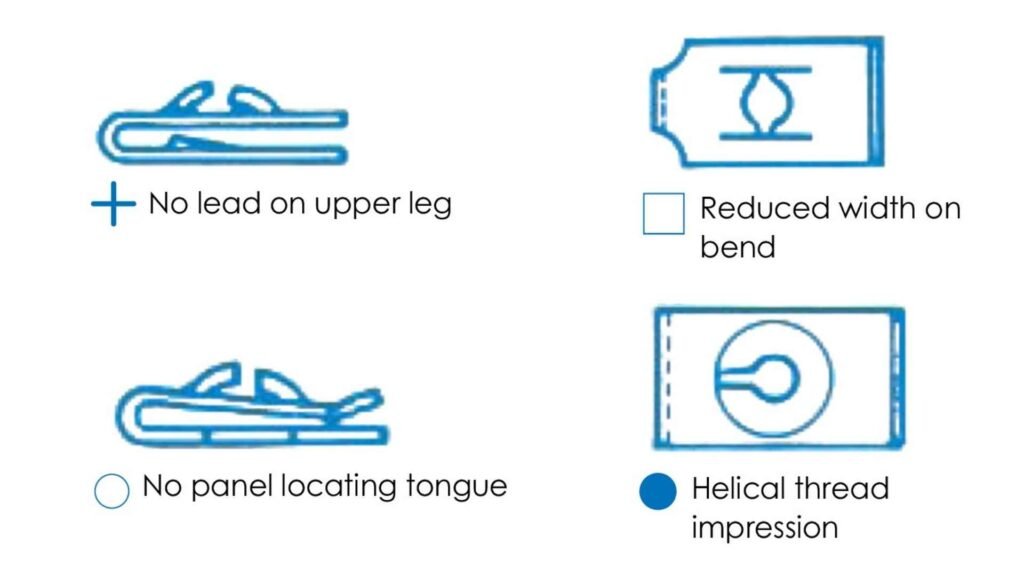

Feature Code
- Prong type thread impression
- No panel locating tongue
- Earthing barbs
- No lead on upper leg
- Reduced width on bend
- Helical thread impression
Technical Data
‘U’ Type Nuts – CBUN Series
MATERIAL
CS60, CS70 carbon steel, austempered or Type 300 series stainless steel
WHEN SPECIFYING, PLEASE STATE
- Quantity
- Prefix (CBUN)
- Part No.
- Finish code (e.g. 2000 CBUN-0212-13)
Dimensions
Dimensions in millimetres
Dimensions in millimetres
Technical Data
‘U’ Nut Retainers – CBUR Series
PSM ‘U’-Nut retainers have been developed for use where extra high torque and holding power is required.
ADVANTAGES
> High load bearing faces
> Enables high torque on machine screws
> Electro-plated finish not subject to embrittlement failure
> Removes need for expensive rivet bushes
MATERIAL
Carbon steel
WHEN SPECIFYING, PLEASE STATE:
- Quantity
- Prefix (CBUR)
- Part No.
- Finish code (e.g. 1000 CBUR-0170-13)
METHOD OF ASSEMBLY:
Exactly the same as conventional ‘U-Nut.
Dimensional Data & Sizes
Other thread sizes available on request.
