Advantages

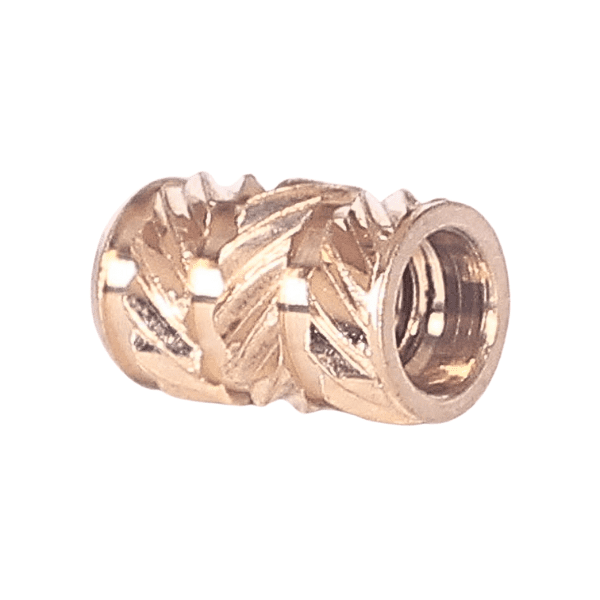

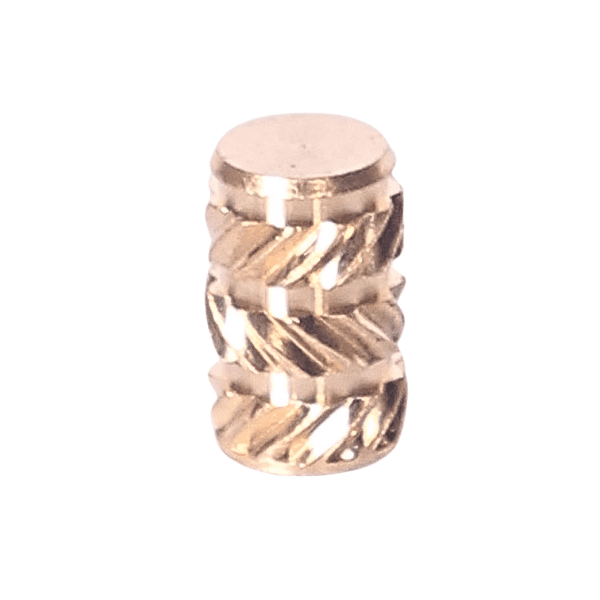

- Blind ended - prevents ingress of plastic
- Counterbore prevents ingress of plastic and eases assembly on locating pins
- Counterbore prevents ingress of plastic and eases assembly on locating pinsRolled threads reduce risk of contamination of mouldings due to metal swarf
- Absence of PIP at blind end reduces risk of contamination and assists automatic insert loaders
Selection of Inserts
ISO Metric
Specifying an Insert
Boss Design Specification
Flo-Tech inserts can be installed after moulding in some applications – please consult the P.S.M Technology Centre or your local Sales Office for further advice.
Mould pin design is critical to the success of the moulding-in operation since the features shown are used to locate and retain the insert prior to moulding and prevent the ingress of plastic during the process.
