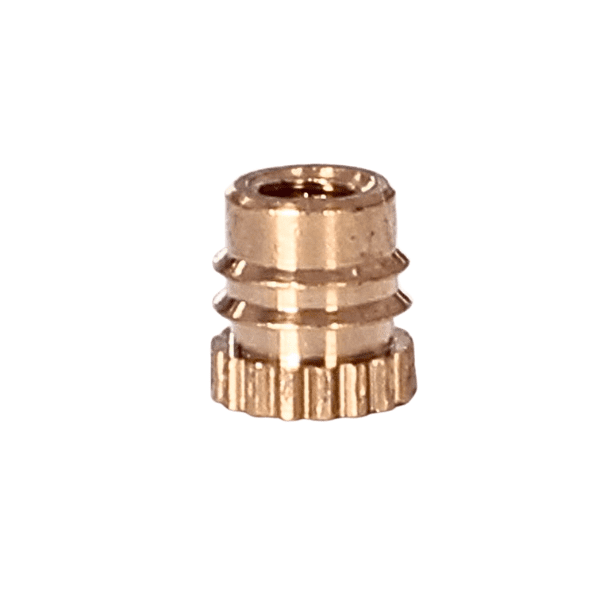

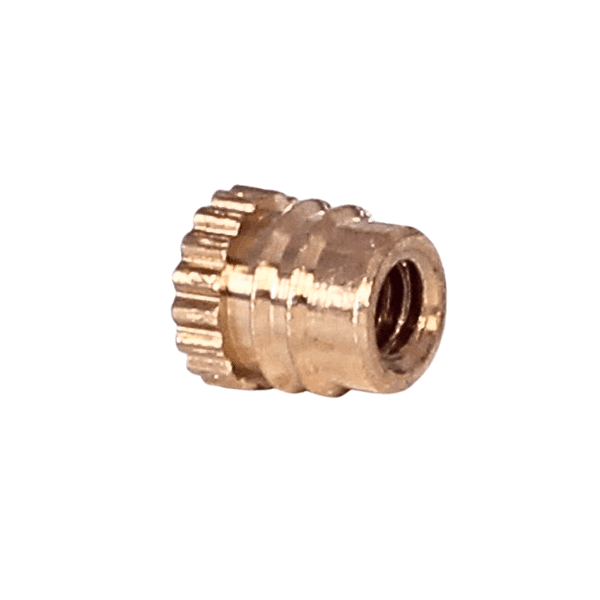

Advantages
- Easy press-in insertion
- High pull-out performance in most thermoplastics
- Self-aligning - assists installation
Selection of Inserts
ISO Metric
Unified
Other materials and lengths possible on quotation.
Specifying an Insert & Stud
Boss Design Specification
Hole Preparation
Moulded holes are recommended wherever possible. The taper on a moulded hole should be 1° inclusive and the hole diameter recommended should apply at the point reached by the bottom of the insert. The top of the hole should not be chamfered or counterbored and care must be taken to avoid bell mouthing. Hole diameter tolerance: -0.00 +0.10mm.
Installation
The inserts must be installed using a steady squeeze action press. A hammer blow type installation will prevent plastic flow and may damage the boss.
Wall Thickness
A general guide to minimum wall thickness is given in the data table but this will vary depending upon the nature of the plastic. Where thinner walls are required these can often be accommodated, but consultation with the P.S.M Technology Centre or local sales office and pre-production testing is strongly advised.
Performance Data
The complexity of materials and variations in service conditions make it impossible to detail fastener performance for specific applications. The chart below gives a general guide and show the relative performance of the inserts in the range.
